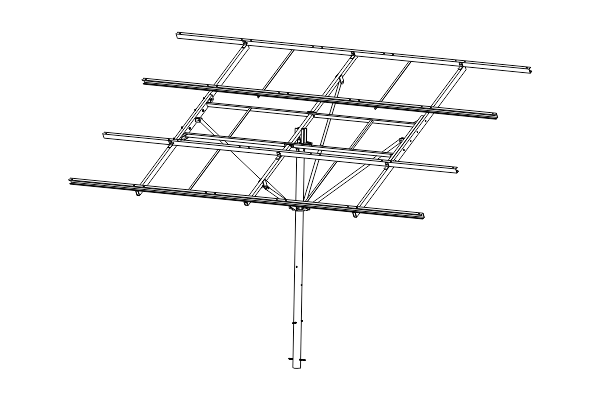

SOLAR PUMPING SOLUTIONS SSMT (TRACK)
Features
- Small area required.
- Best
suitable
for
Off-grid
PV
System.
- Maximum
power
generation
achieved
by
manually
angle
adjustment.
- Easy
and
fast
Installation
due
to
pile
foundation
Application : Open terrain
- Tilt
Angle
:
0°,
15°,
30°
- Size
of
module
array
:
Up
to
11
Plates
- Foundation
:
Pile-foundation
,
bored,
Shallow
- Recommended
Wind
Speed
:
150
km/hr
(Max)
- Module
Orientation
:
Portrait
Material
- Hot
dipped
Galvanized
steel
E250
Grade(*Material
Grade
also
available
on
customer
Demand)

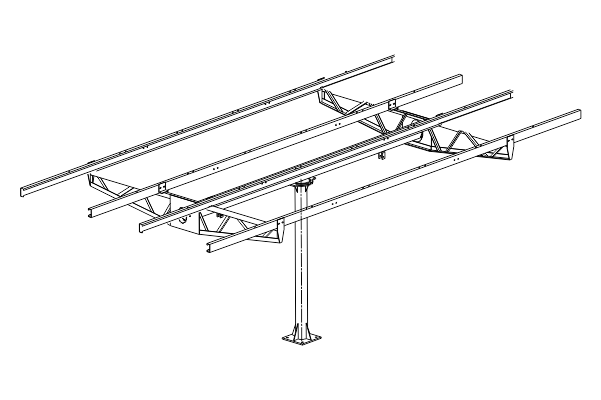

SSMT (TRUSS)
Features
- Small area required.
- Best
suitable
for
Off-grid
PV
System.
- Maximum
power
generation
achieved
by
manually
angle
adjustment.
- Easy
and
fast
Installation
due
to
pile
foundation
Application : Open terrain
- Tilt
Angle
:
0°,
15°,
30°
- Size
of
module
array
:
8,
10
Plates
- Foundation
:
Pile-foundation
,
bored,
Shallow
- Recommended
Wind
Speed
:
150
km/hr
(Max)
- Module
Orientation
:
Portrait
Material
- Hot
dipped
Galvanized
steel
E250
Grade(*Material
Grade
also
available
on
customer
Demand)

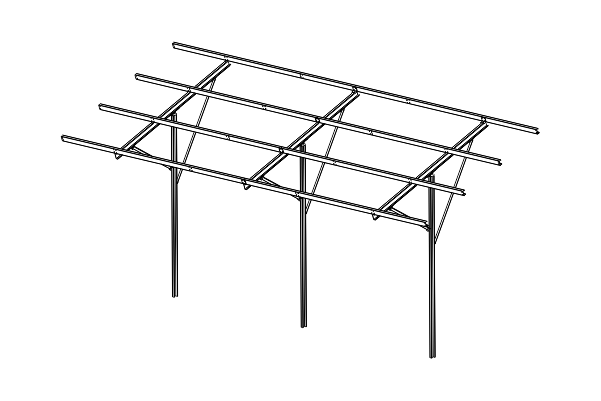

SOLAR GROUND MOUNTING
SOLUTIONS SSMT (FIX)
Features
- Double
post
optional
for
larger
span
and
bigger
array.
- Ramming
posts
saves
the
additional
excavation
works.
- Significant
savings
by
pile-driven
machine
with
fast
piling..
- Single
post
system
allows
for
easy
maintenance.
Application : Open terrain, Land fill
- Tilt
Angle
:
Up
to
30°
- Clearance
:
On
request
- Distance
between
footings
:
Depending
on
load
condition
Material
- Anodized
aluminum
6005
T6
stainless
steel
304,410
- Hot
dipped
Galvanized
steel
E250
Grade

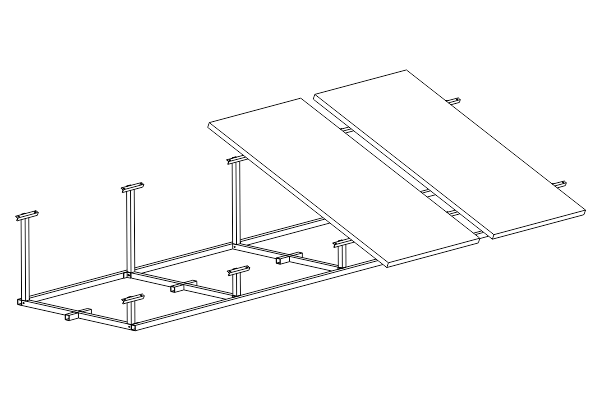

SOLAR ROOF
TOP MOUNTING SOLUTION
SSMT-LOW ELEVATED
Features
- Fixed
angle
or
adjustable
angle
as
per
customer
requirement.
- Pre-assembled
components
simplified
installation
- Fast
Installation
with
simple
modular
system
on
Commercial
Roof.
- Roof
surface
can
be
protected
with
low
additional
loads.
- Compact
delivery
saves
logistics
cost
and
easy
for
upload.
Application : : Flat Roof , Open terrain, Portable
- Tilt
Angle
:
Up
to
23°
(Other
angle
on
request)
- Building
Height
:
Up
to
10m
- Recommended
Wind
Speed
:
150
km/hr(Max)
- Module
Orientation
:
Portrait
Material
- Hot
dipped
Galvanized
steel
E250
Grade

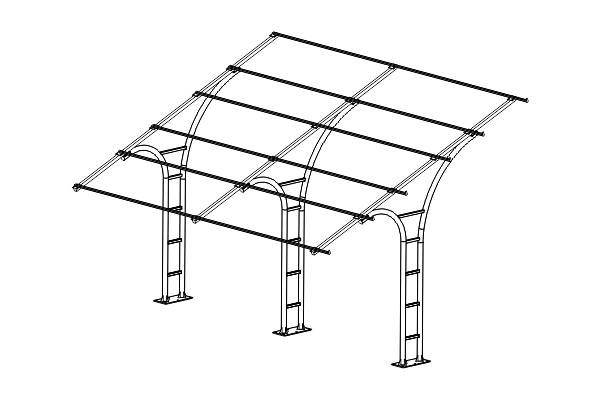

SSMT-CP (SHED-ROOF)
Features
- No
need
to
provide
roofing.
- Solar
panel
carport
does
not
require
separate,
dedicated, land,
but
rather
makes
use
of
an
existing
area
and
enhances
its
value.
Application : Open terrain
- Tilt
Angle
:
Recommended
below
25°
- Distance
between
footing
:
Minimum
3000
mm
- Recommended
Wind
Speed
:
120
km/hr Module
Orientation
:
Landscape
,
Portrait
Material
- Anodized
aluminum
6005
T6
stainless
steel
304,410
- Hot
dipped
Galvanized
steel
E250
Grade

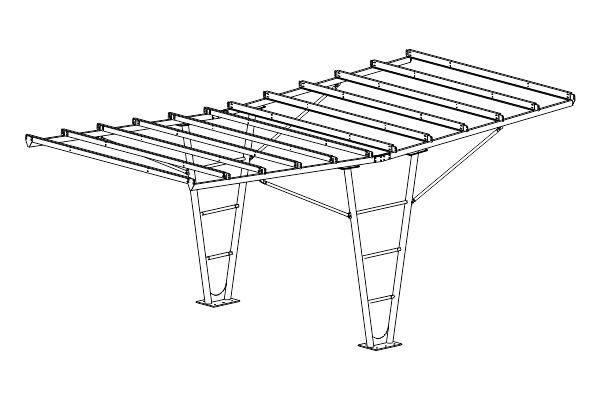

SSMT-CP
(BUTTER-FLY ROOF)
Features
Application : Open terrain
- Roof
Angle
:
Recommended
below
6°
- Distance
between
footing
:
Minimum
3000
mm
- Recommended
Wind
Speed
:
120
km/hr
- Module
Orientation
:
Landscape
,
Portrait
Material
- Anodized
aluminum
6005
T6
stainless
steel
304,410
2)
Hot
dipped
Galvanized
steel
E250
Grade
